Optical measuring machine VICIVISIONM309 TECHNO

Luxinox Lavorazioni meccaniche CNC

M309 TECHNO is an optical measuring machine for the external dimensional monitoring of cylindric elements. Measurements are here taken with an optical no-touch system.

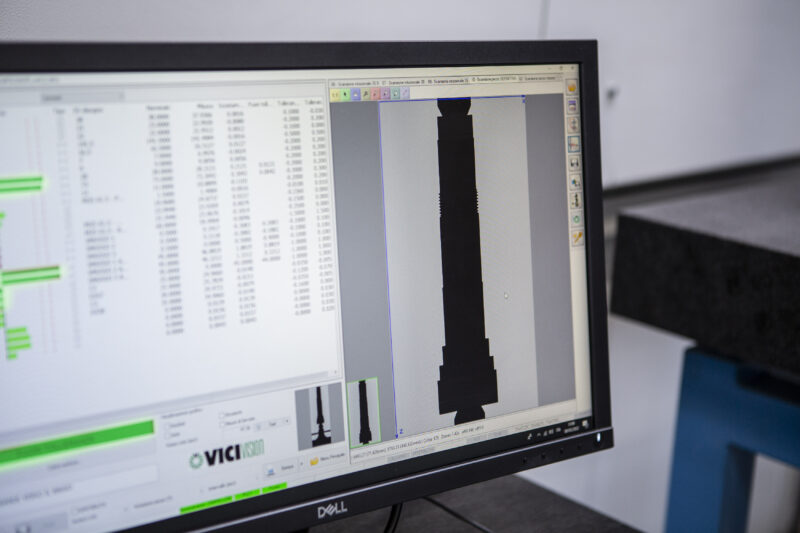

The vision system creates a high-resolution image which gets processed by an analysis system.

  • Largest measurable piece H 300mm x Ø  90mm
  • Diameter accuracy (1,5+D[mm]/200) μm
  • Length accuracy (4+L[mm]/200) μm
